Función | Ancho Hoja (mm) | Alto Hoja (mm) | Peso Hoja (kg) | |||
Min. | Max. | Min. | Max. | |||
FFB | FFB | FFH | FFH | |||

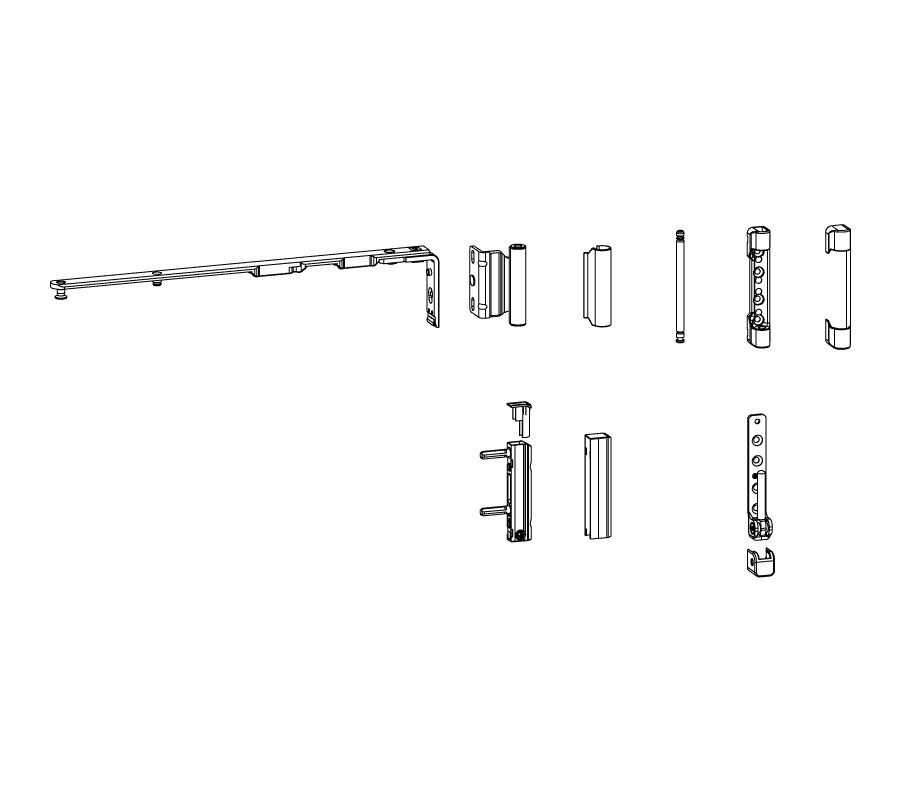

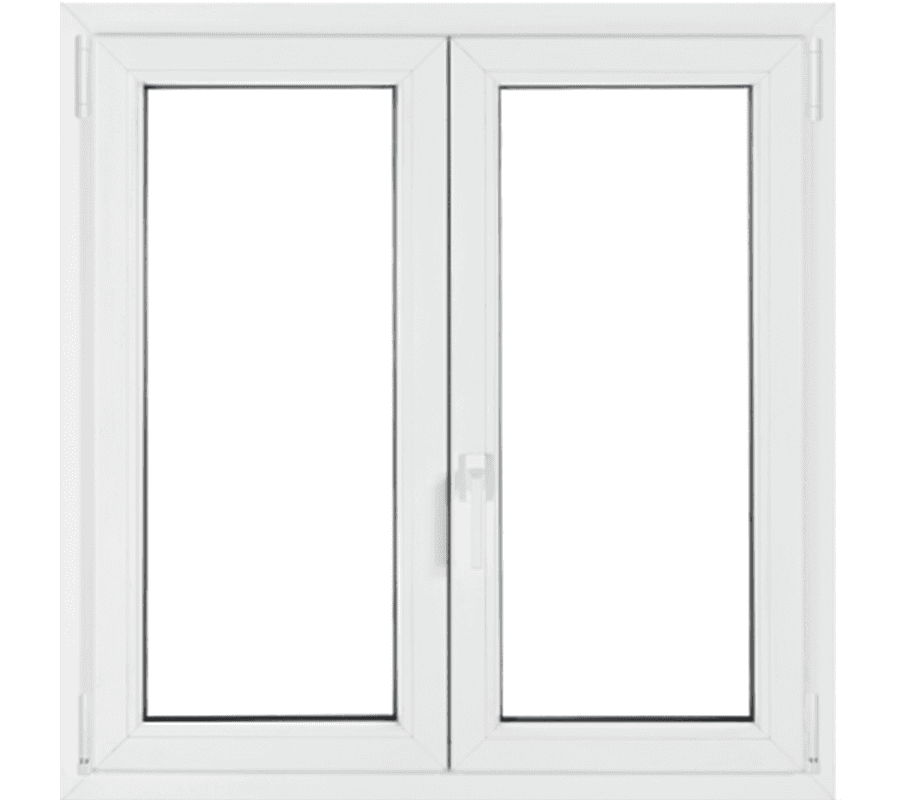

Uni-Jet D | Oscilo-Batiente | 280 | 1600 | 350 | 2800 | 100/130/150 |
Uni-Jet D | Practicable | — | 1600 | 450 | 2800 | 100/130/150 |
Uni-Jet D “R” Ventana Arco | Oscilo-Batiente | 455 | 1260 |
600 (FFHR) |
1600 (FFHR) |
60 |
Uni-Jet D “S” Ventana Inclinada | Oscilo-Batiente |
400 (FFBS) |
1450 (FFBS) |
450 | 2350 | 100 |
Uni-Jet D Ventana Abatible | Practicable | 410 | 1900 | — | — | 80 |
Función | Ancho Hoja (mm) | Alto Hoja (mm) | Peso | |||
PVC |
Min. FFB |
Max. FFB |
Min. FFH |
Max. FFH |
Hoja (kg) |
|

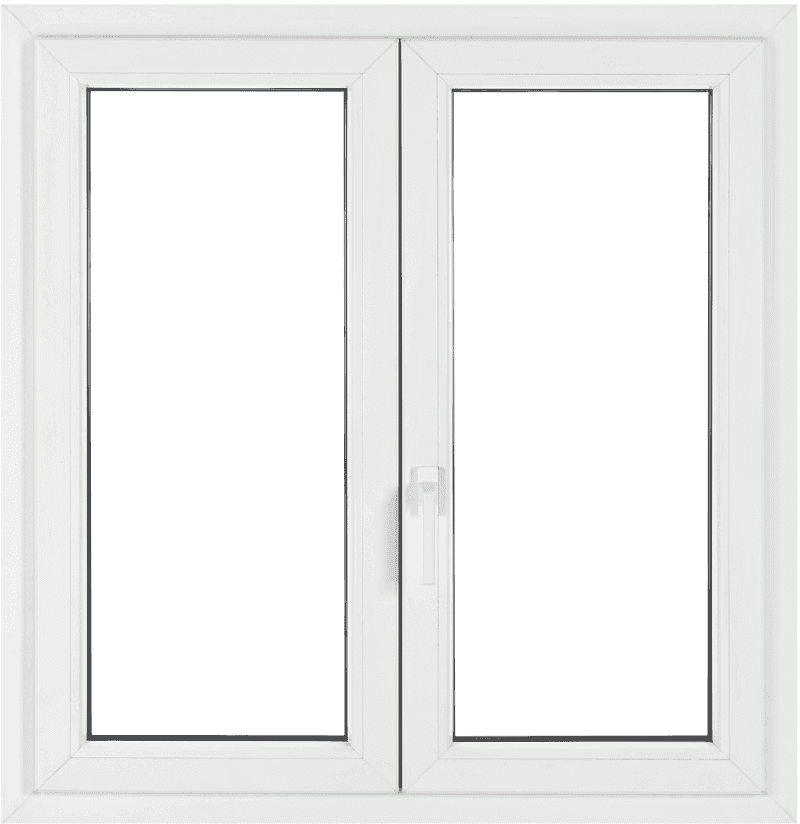

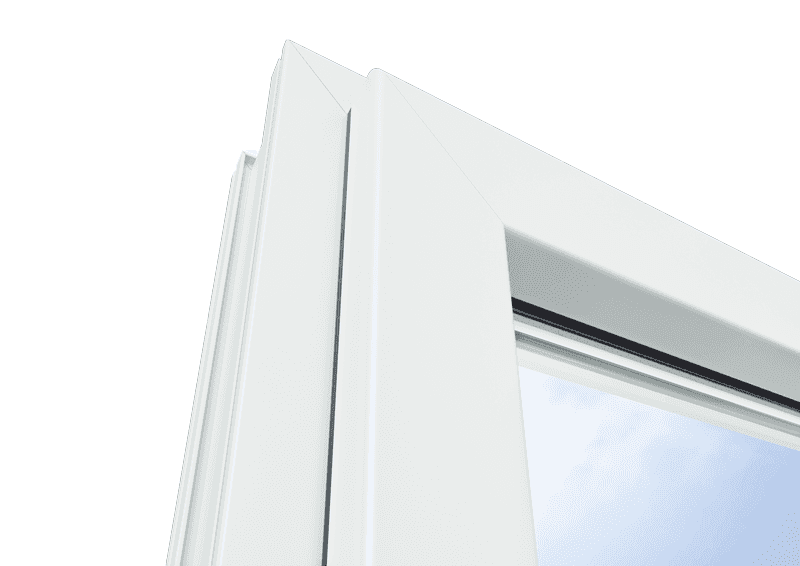

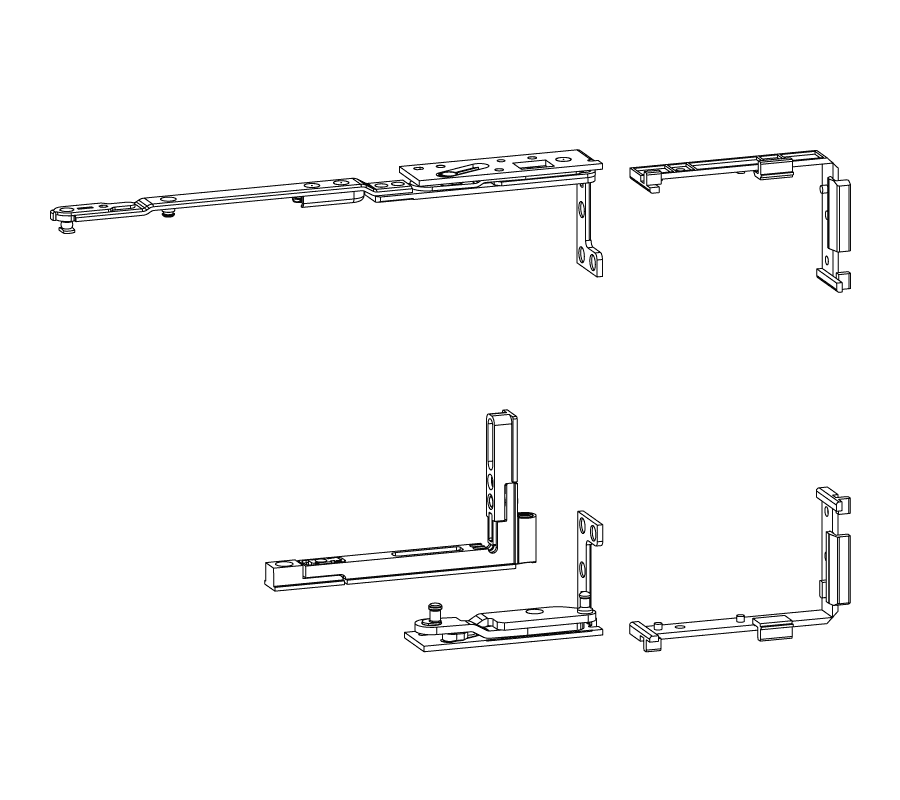

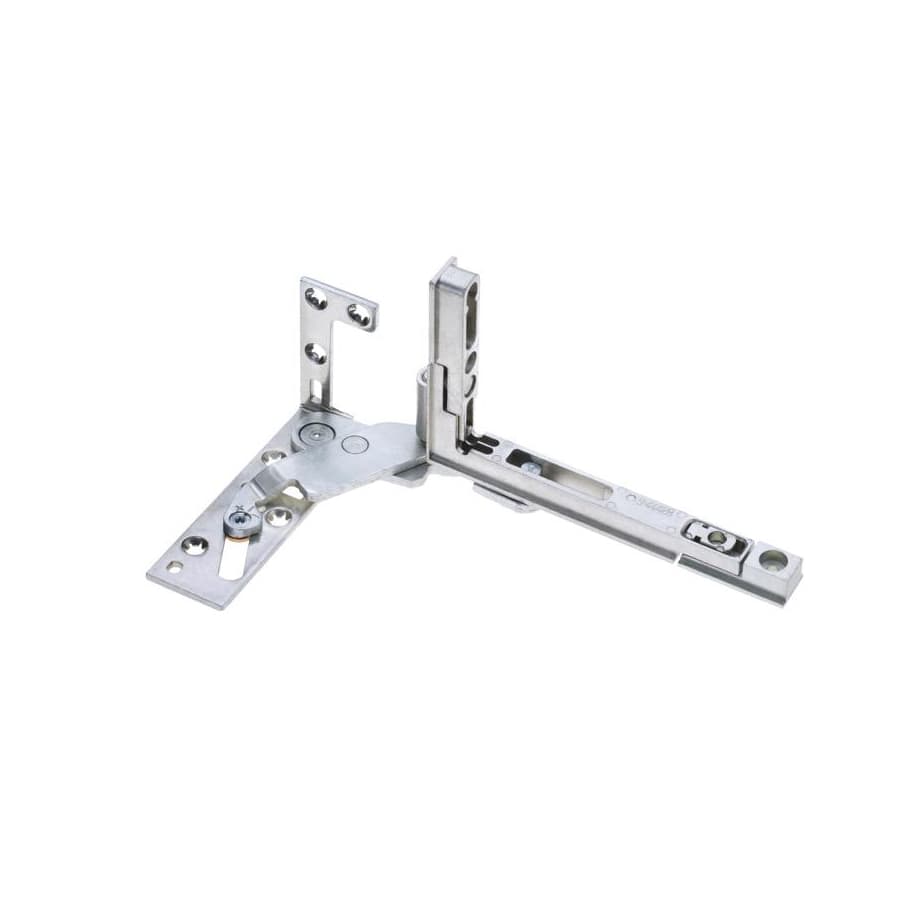

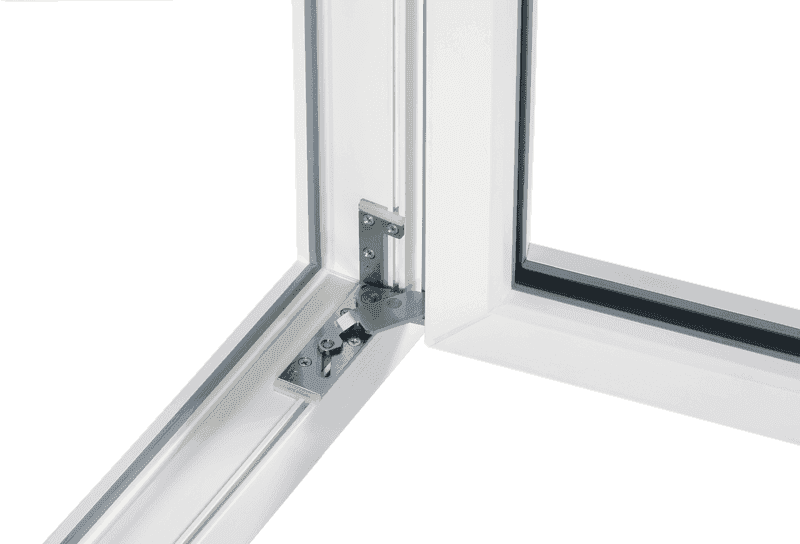

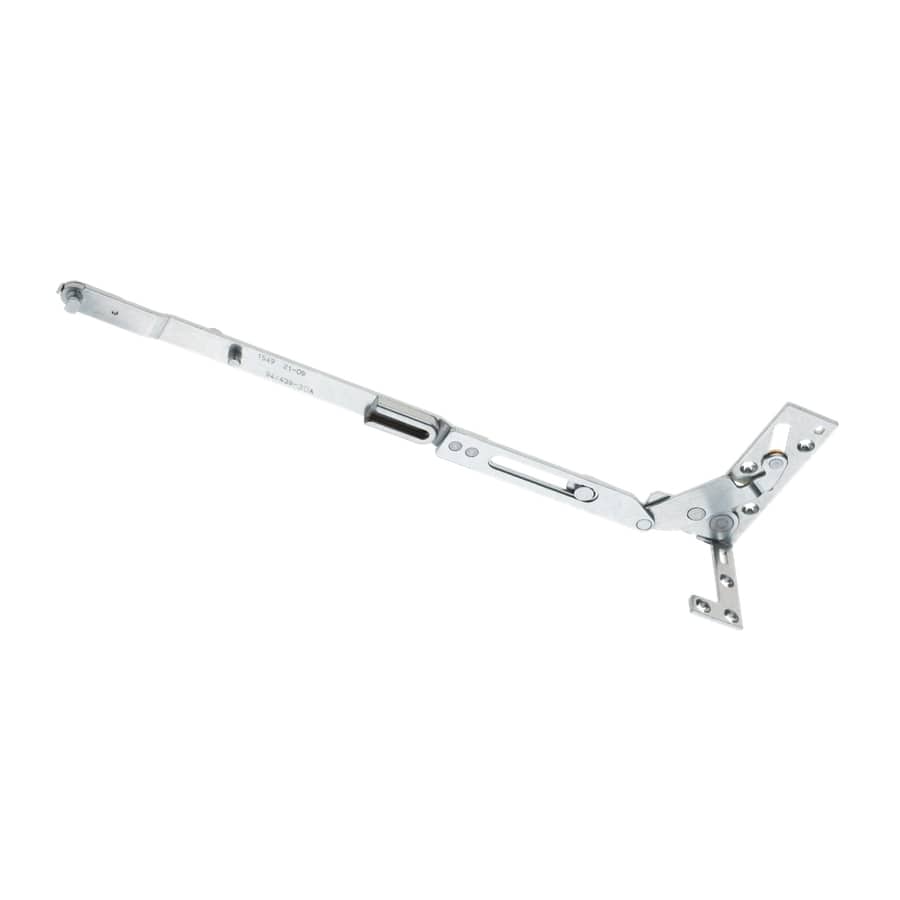

Uni-Jet SC | Oscilo-Batiente | 390 | 1200 | 350 | 2800 | 100 |
Uni-Jet SC | Practicable | 390 | 1200 | 350 | 2800 | 100 |
